Add or remove a table or view

Adding Tables

To work with tables and views in your query, you add them to the Diagram pane.

1. In the Diagram pane of the SQL Query Builder, right-click the background and choose 'Add Table(s)...' from the shortcut menu.

2. In the Add Table dialog box, select the tab for the type of object you want to add to the query.

3. Double-click each item you want to add. When you finish adding items, click Close.

The SQL Query Builder updates the Diagram pane, Grid pane, and SQL pane accordingly. Alternatively, you can drag objects from the Object Browser onto the Diagram pane. You can drag a table or a view.

Tables and views are automatically added to the query when you reference them in the statement in the SQL pane.

Removing Tables

You can remove a table or view from the query. Removing a table or view does not delete anything from the database.

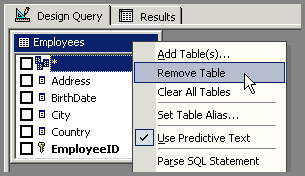

In the Diagram pane, select the table or view and then press DELETE, or right-click the object and then choose Remove Table. You can select and remove multiple objects at one time by choosing 'Clear All Tables' option.
